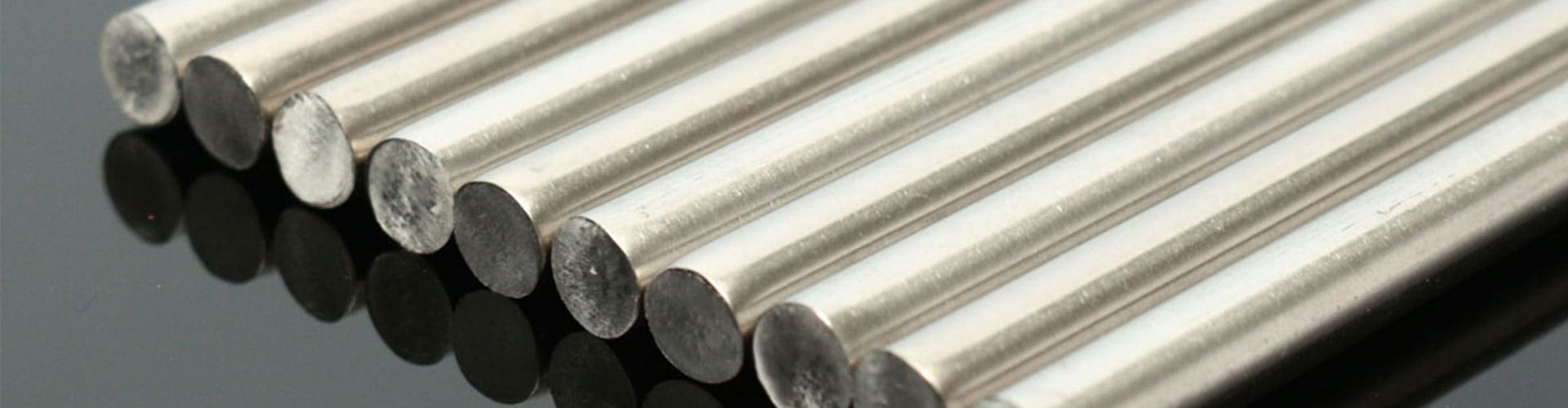

Nickel 201 Round Bars
Nickel 201 is a low-carbon, commercially pure wrought alloy grade. According to specification ASTM B160, these parts may be worked either by hot working, cold working, or annealing. Apart from the chemical composition and mechanical properties, every ASTM B160 UNS N02201 Rod shall conform to the values of tension test, chemical analysis, and hardness test.
Nickel 201 Round Bars Manufacturers, Nickel 201 Round Bars Suppliers, Nickel 201 Round Bars Stockists, Nickel 201 Round Bars Exporters
Nickel 201 Round Bars Manufacturers in India, Nickel 201 Round Bars Suppliers in India, Nickel 201 Round Bars Stockists in India, Nickel 201 Round Bars Exporters in India
The alloy has many properties quite close to those of Nickel 200; however, since the carbon content is lower in the Nickel 201 Round Bar alloy, it resists embrittlement due to inter-granular carbon at a high temperature. These components are resistant to several chemicals, including acids and alkalis, due to the higher nickel content in the alloy, and hence resistant to dry gases at ambient temperature. The importance of nickel in the Nickel Alloy 201 Square Bar confers resistance to mineral acids in this material. However, it is a property dependent on aspects like temperature, aeration, and solution concentration.
A Din 2.4068 Hex Bar possesses much better corrosion resistance properties if the acid has been de-aerated. The corrosion resistance properties of this alloy make certain its sustenance in several corrosive compounds. For example, the Alloy 201 Flat Bar could be used in the manufacture and handling of chemicals such as sodium hydroxide and aniline hydrochloride, as well as in the chlorination of aliphatic hydrocarbons, including such chemicals as methane, benzene, and ethane.
Sankalp Alloys Overseas is one of the well-known manufacturers, suppliers, stockists, and exporters of qualitative Nickel 201 alloy products. Their wide range includes Nickel 201, made from materials to ensure reliability and the highest level of performance Industries.
Nickel 201 Round Bars Manufacturers in Mumbai, Nickel 201 Round Bars Suppliers in Mumbai, Nickel 201 Round Bars Stockists in Mumbai, Nickel 201 Round Bars Exporters in Mumbai
ASTM B160 Nickel 201 Round Bars Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | - | LC-Ni 99 |
Stock Size Range and Specifications For ASTM B160 Nickel 201 Round Bar
Specification : EN, DIN, JIS, ASTM, BS, ASME, AISI
Standard Specification : ASTM B160 / ASME SB160
Size : 15NB to 150NB IN
Diameter : 3.17mm to 350mm diameter
Length : 100 mm to 3000 mm Long & Above
Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc
Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline
Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished
Chemical Alloyion of Nickel 201 Round Bars
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Mechanical Properties of Nickel 201 / N02201 / 2.4068 Round Bars
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
