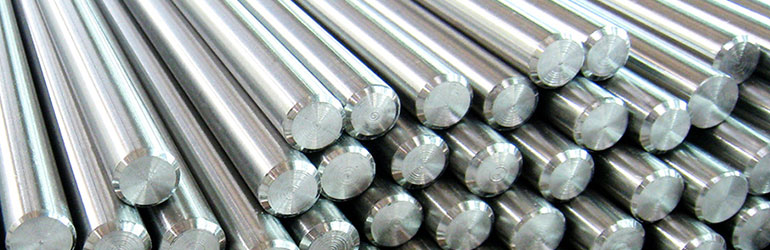

Hastelloy C22 Round Bars Manufacturers, Hastelloy C22 Round Bars Suppliers, Hastelloy C22 Round Bars Stockists, Hastelloy C22 Round Bars Exporters

Hastelloy C22 Round Bars Manufacturers in India, Hastelloy C22 Round Bars Suppliers in India, Hastelloy C22 Round Bars Stockists in India, Hastelloy C22 Round Bars Exporters in India

The high chromium content provides UNS N06022 Bar with good resistance when exposed to oxidizing media. Minor additions of molybdenum and tungsten in the Alloy C22 Round Bar provide good resistance in reducing media. These Alloy C22 Round Bars (UNS N06022) can easily be cold-worked because of its ductility and cold-forming is the preferred method of forming. Alloy C22 Rods has shown an outstanding resistance to a wide range of chemicals, including chlorides, organic and inorganic solutions.

Hastelloy C22 further resists other corrosive media, including oxidizing acid chlorides, wet chlorine, ferric and cupric chlorides, formic and acetic acids, brine, and seawater. Additionally, this alloy exhibits resistance to a vast number of mixed or contaminated chemical solutions, both organic and inorganic in nature.

The nickel content of the Hastelloy C22 Round Bar creates opposition to grain-boundary precipitates in the weld heat-affected zone; this makes the alloy suitable for most of the chemical process applications in the as-welded condition. The Hastelloy C22 round bar should not be used in service applications above 1250°F because above this temperature, detrimental phases form. This alloy is solution annealed and worked in different temperature ranges from 1750°F - 2050°F, which is then rapidly cooled.

Due to the Hastelloy C22 Bar cooling at an accelerated rate, it should prevent the formation of injurious phases within the temperature range between 1400°F 1800°F. Being ductile, Hastelloy C22 can also be formed by cold working, though intermediate annealing might be required because of work hardening. Annealing is done between a temperature range of 2020°F - 2150°F, followed by rapid quench. Hastelloy C22 Rod can be welded by gas tungsten-arc, gas metal-arc, and shielded metal-arc processes.

Hastelloy C22 Round Bars Manufacturers in Mumbai, Hastelloy C22 Round Bars Suppliers in Mumbai, Hastelloy C22 Round Bars Stockists in Mumbai, Hastelloy C22 Round Bars Exporters in Mumbai

Equivalent Grades of Hastelloy C22 Round Bars

Chemical Alloyion of Hastelloy C22 Round Bars

ASTM B574 Hastelloy C22 Round Bars Mechanical Properties
